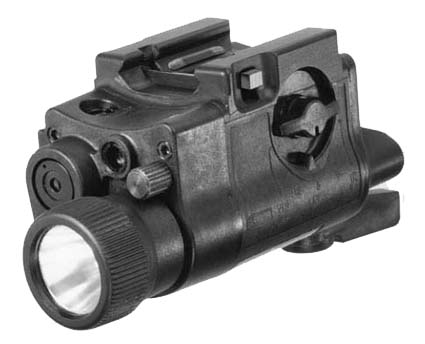

LAM - Laser Aiming Module
The Laser Aiming Module is an advanced single-module, multi-function illuminator and aiming device derived from the military standard AN/PEQ-6. Attaching and detaching in only 2 seconds, the LAM is the ultimate system for providing a unique combination of a visible laser, infrared laser, infrared illuminator, and white light illuminator.
DIMENSIONS WEIGHT TEMP RANGE RANGE: IR AIMING MODE RANGE: IR ILLUMINATOR MODE RANGE: VISIBLE AIMING MODE
4.5" L x 1.6" W x 2" 5 ounces w/batteries -40° to +45°C >200 meters >50 meters >50 meters day and >700 meters night
RANGE: FOCUSABLE VISIBLE ULLUMINATOR WAVELENGTH: IR MODE WAVELENGTH: VISIBLE MODE POWER: TYPE POWER: LIFE TARGET REPEATABILITY
>25 meters (facial recognition) 810-850nm 620-650nm 2 Standard DL123A 3V Lithium Batteries 300 One Second Illuminations (Laser/Flashlight Simultaneously) +/- 1.27 cm @ 25 meters
ATTACHMENT/
DETACHMENT TIME		 WINDAGE & ELEVATION ADJUSTMENT WATERPROOF DURABILITY ENVIRONMENTAL SHOCK AND VIBRATION LAMP TYPE
<15 seconds 30.48 cm min. total Horizontal & Vertical Deflection @ 25 meters 66 ft. Submersion for 2 hours 30,000 rounds of weapon fire Meets full military specification. tungsten halogen, xenon filled
