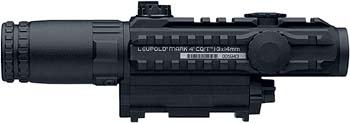

Mark 4 1-3x14mm CQ/T

The Leupold Mark 4 1-3x14mm CQ/T is a revolutionary optical sight for tactical firearms such as the AR-15 and M16. Developed in cooperation with both the U.S. military and law enforcement agencies, the Mark 4 CQ/T combines the strengths of a red dot sight and a variable power riflescope. Incredibly tough, 100 percent waterproof, and devastatingly accurate, only the Mark 4 CQ/T is ready and able to handle the variety of close-contact situations common to both law enforcement and the military.

Close Quarter/Tactical Scope Features

• True 1x setting functions as your non-magnifying, illuminated sight for tactical scenarios or engaging targets at extremely close range.

• 2x or 3x settings give you the additional power to accurately engage targets at medium ranges.

• Leupold Circle Dot reticle is a bold aiming point for the operator, and also provides range estimation.

• 1/2-MOA “click” adjustments for windage and elevation.

• Ten reticle illumination settings to match any light conditions without overwhelming your natural low-light vision — two low-intensity settings work with night-vision devices.

• Attach accessories using the integrated MIL-STD-1913 rail mount cross-slots.

• Large field of view for fast target acquisition and tracking of moving targets.

• One AA battery powers the Mark 4 CQ/T for up to 600+ hours at medium setting.

Product Specifications

Actual Magnification: 1.0 - 2.9
Length (in): 8.8
Eyepiece Length (in): 3.0
Objective Length (in): n/a
Objective Diameter (in): 1.2
Eyepiece Diameter (in): 1.5
Tube Diameter (in): 2.9
Weight: 17.5 oz. / 496 grams
Eye Relief (in): 2.0 - 2.8
Eye Relief (mm): 51 - 71
Objective Clear Aperture: 0.6in / 14mm
Elevation Adjustment Range (MOA): 80
Windage Adjustment Range (MOA): 80
FOV @ 100 yds (ft): 116.6 - 84.3
FOV @ 100 m (m): 38.9 - 28.1

Ring Spacing
Max. Mount Ring Spacing (in): 1.6

The Circle Dot Reticle
The Circle Dot reticle of the Mark 4 CQ/T is designed to offer fast target acquisition in any environment.

Range Estimating with the Circle Dot Reticle
Estimating range using the Circle Dot reticle is simple. Place the target inside the circle of the reticle. At 3x the diameter equates to 6 feet in height at 100 yards. At 200 yards, 6 feet is measured from the dot to the edge of the circle.

Dot Size: 3 MOA at 3x, 9 MOA at 1x.

Circle Size: Edge to edge, the subtension of the circle is 18 inches at 25 yards, or 6 feet at 100 yards when set on 3x. From the center of the dot to the edge of the circle, the subtension is 6 feet at 200 yards when set on 3x.

Circle Line: The width of the line creating the circle is large enough to be easily visible, but thin enough so as not to obliterate an 18-inch object at 500 yards when set on 3x.

Mark 4 CQ/T Flat Top Mounting Bracket
Secure your Mark 4 CQ/T scope to any Picatinny-style mounting rail using this specially designed mounting bracket. Two rugged cross-slot bolts secure the bracket for rock-solid durability.
