511.A65 and 512.A65 Tactical Units
Model 511.A65 with N Batteries and Model 512.A65 with AA Batteries
The HWS has been designed and tested to provide consistent, reliable performance even in the most hostile operational environments. It is waterproof, fogproof, shockproof, and temperature proof. Holographic Weapons Systems (HWS)

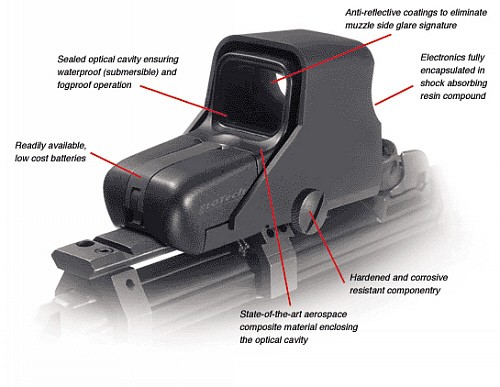

The HWS uses state-of-the-art digital electronics design. Twenty brightness levels ensure proper brightness control in either low light or very bright sunlight. An on-board microprocessor provides automatic battery check indicator, up/down brightness scrolling and programmable auto shutdown features. All electronics are fully encapsulated in shock absorbing resin compound. The HOLOgraphic Advantage The holographic patterns have been designed to be instantly visible in any light, instinctive to center regardless of shooting angle, and to remain in view while sweeping the engagement zone. Reticles are designed as large, see-through patterns to achieve lightning quick reticle to target acquisition without covering or obscuring the point of aim. Heads Up, Full View

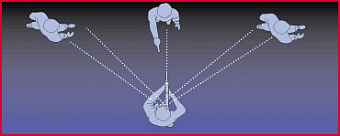

The HWS employs a true Heads-Up Display that eliminates blind spots, constricted vision, or the tunnel vision associated with tubed sights. All user controls are flush to the HWS's streamline housing with no protruding knobs, battery compartments or mounting rings blocking vision at the target area. True, 2 eyes open shooting is realized. Instant threat identification is achieved by maximizing the operator's peripheral vision and ultimately gaining greater control of the engagement zone. Extreme Durability

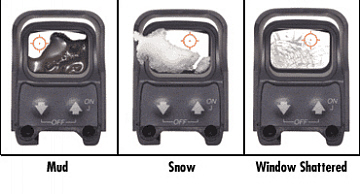

The HWS is designed to withstand Mil-Spec drop tests and still remain fully operational and hold zero. The HWS has been extensively tested in a punishing recoil simulator generating 3,500 G's of acceleration in less than 0.5 milliseconds (the recoil of a .454 Casull revolver) as well as various environmental chambers). The Heads Up Display is constructed with a 3 layer, shatterproof laminate glass that is 3/16" thick for added durability. Additional protection of the Heads Up Display is provided with a "roll bar" ruggedized hood. The HWS has been designed and tested to provide consistent, reliable performance even in the most hostile operational environments. It is waterproof, fogproof, shockproof, and temperature proof. The Magic of Holography In holography, all the information required to reconstruct the reticle image is recorded everywhere in the Heads-Up display window. If the window is obstructed by mud, snow, rain, etc., the HWS remains fully operational , with point of aim/impact being maintained. Even in such extreme cases where the laminated window is shattered, the HWS is fully functional! As long as the operator can see through any portion of the window, the entire reticle pattern is visible on target...the operator can still engage with confidence. No Revealing Signature

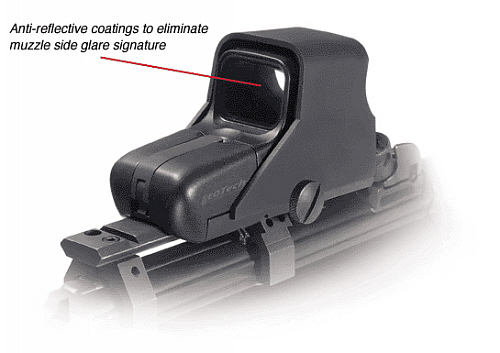

The HWS does not emit any muzzle side position revealing light signature...the projected reticle pattern is visible only to the operator. Even Gen III night vision equipment cannot detect muzzle side signature of the operator's position. All optical surfaces are flat and treated with anti-reflective coatings eliminating additional muzzle side signature due to reflective glare. No need for costly glare elimination filters that reduce the effective light transmission and further dim the target area. Mounting Options
511.A65 Waterproof
to 10 feet
512.A65 Waterproof
to 10 feet Optics: Transmission holography – 100% parallax free Magnification: 1x unlimited eye relief Length/Width/Height: 4" x 1.8" x 2.25" (102 x 49 x 60 mm), 'AA' model: 5" x 1.8" x 2.25" (131 x 49 x 60mm) Weight: 8.8 ounces (250 grams), 'AA' model: 11.5oz (326 grams) Temperature: -20 to 150F (operating); -40 to 160F (storage) Sealing: Waterproof (submersible) & fogproof Color/Finish: Non-reflective black with hard coat finish Adjustment (per click): 0.5" at 100 yards Adjustment Range: +/- 40 MOA travel Mount: 1" 1" Weaver dovetail/Picatinny rail (Mil spec 1913) Return to Zero: Repeatable to 1 MOA after remounting Heads-Up Display Window Optical Surfaces: Anti-glare and scratch resistant coatings Window Dimensions: 1.20" x 0.85" (30 x 23 mm) Window Material: Shatterproof laminate (3/16" thick) Field of view (100 yards): 30 yards (28m) at a 4" eye relief Standard Reticle: 65MOA ring with quadrant ticks with a 1MOA Aiming dot Reticle Contrast Ratio: 28,000:1 brightest to lowest Night Vision Contrast Ratio: 10,000,000:1 with NV switch engaged Electrical Power Source: Universally available AA batteries (supports lithium, alkaline or rechargeable) Optional Power Source: "N" Alkaline batteries (camera-type batteries, available most anywhere) Battery Life: "N" type: 200 hours, AA batteries: 600 hours, AA Lithium: 1100 hours Brightness Settings: 20 settings with scrolling feature Auto Battery Check Indicator: Flashing reticle upon startup if batteries are at 20% of battery life. Auto Shutdown: At 8 hours – programmable to 4 hours
As EOTech continues to enhance the products, specifications are subject to change. Testimonials "Let me tell you, that sight is awesome... there have
been a few bad guys on the opposite end of that site, and because of your
superior craftsmanship, I am writing you this letter a grateful man." "I have literally banged, dropped, slammed and scratched the sight
to the point that the finish is coming off and there are gouges in the
casing. The sight has been on my weapon since February 2003 and it has
maintained zero ever since. It has weathered multiple sand, dust and mud
storms... and it still operates flawlessly." "The sight is by far the best I have ever used. That is including
my time spent in Marine Recon and Special Operations Units." "I zeroed with, and then utilized the sight today....Wow! I really
like it. This sight allows for a true "two eyes open" sight
picture." "The sight was very fast in CQB situations. I have never used another
sight that was faster or easier to use." "We call the HWS...the "heat" "As for the sights, well... the best way to put it is... they are
like cheating. Really, those things are the best tool that I have. It
is so fast and easy to acquire that it's idiot proof. You don't loose
the reticle in the bright light (the Aimpoints are terrible for that)
and the dot is super easy to acquire." |
||
|
|
